What we know about the measurement:

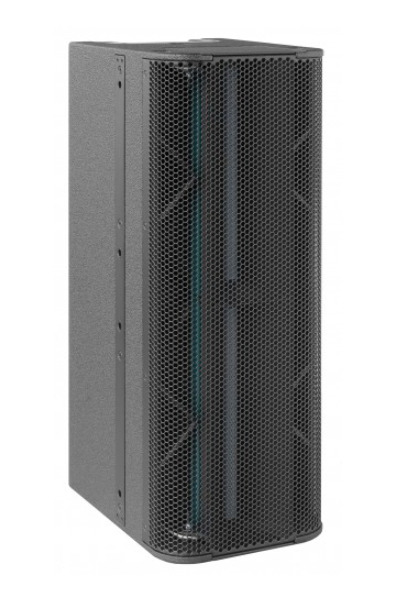

Alcons Audio QR24 is a passive columns

  • Quality of the measurement data is high.
  • Origin of the data is Alcons Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 108.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 88.0dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 71.0Hz (resp. 67.0Hz).
  • Reference level is normalised to -0.0dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.4dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.85 and would be 7.72 with a perfect subwoofer.
      • Details: NBD: ON 0.311, LW 0.279, SP 0.484, PIR 0.346; SM: SP0.778, PIR0.796; LFQ 1.333, LFX 67Hz
    • Tonality (Preference) Score is 5.51 with an EQ and would be 8.32 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.261, LW 0.213, SP 0.423, PIR 0.28; SM: SP0.864, PIR0.917; LFQ 1.333, LFX 64Hz
  • Vendor specifications:
    • Dispersion: 110° horizontal and 3.6° vertical.
    • Sensitivity 108 dB
    • Impedance 8 Ohm
    • SPL
      • peak: 140 dB
    • Size
      • Width 248mm
      • Height 658mm
      • Depth 336 mm)
    • Weight 22 kg
Alcons Audio QR24
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
LS 71.0 1.03 2.91
PK 262.0 1.24 -0.54
PK 844.0 1.64 -0.7
PK 998.0 2.77 2.35
PK 1220.0 1.58 0.33
PK 1822.0 1.25 2.15
PK 3008.0 1.84 -0.5
PK 7417.0 2.29 -0.72
PK 10361.0 0.96 0.55
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.
