What we know about the measurement:

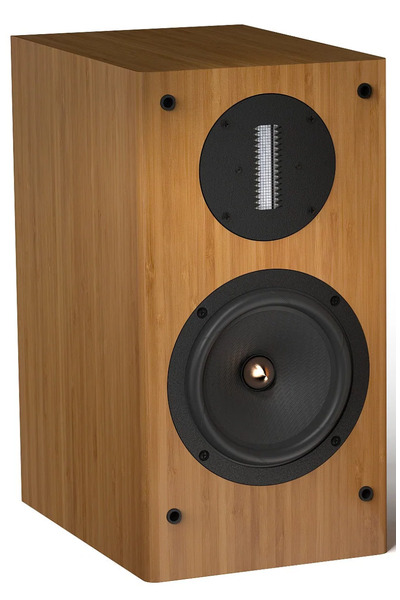

Ascend Acoustics Sierra-2EX V2 is a passive bookshelves that cost around 1648 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is Ascend Acoustics.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • Sensitivity: 82.9dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 58.6Hz (resp. 51.3Hz).
  • Reference level is normalised to -0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.7dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-70.0°, 80.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.76 and would be 7.84 with a perfect subwoofer.
      • Details: NBD: ON 0.359, LW 0.338, SP 0.298, PIR 0.283; SM: SP0.867, PIR0.817; LFQ 0.852, LFX 43Hz
    • Tonality (Preference) Score is 6.81 with an EQ and would be 8.54 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.268, LW 0.254, SP 0.239, PIR 0.207; SM: SP0.918, PIR0.928; LFQ 0.852, LFX 36Hz
  • Link to original Review: vendor review. .
Ascend Acoustics Sierra-2EX V2
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
3 37.0 1.94 3.0
3 235.0 1.43 1.18
3 395.0 2.95 -0.86
3 942.0 2.99 0.62
3 2579.0 1.8 -1.18
3 3177.0 2.97 2.14
3 9319.0 2.06 -1.26
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Ascend Acoustics Sierra-2EX V2 filters_auto_eq

AutomaticEQ

Ascend Acoustics Sierra-2EX V2 filters_eq_full

Target v.s. EQ

Ascend Acoustics Sierra-2EX V2
Graphic EQ 15 bands
Set preamp gain to: -0.3dB.
Type Freq Q Gain
3 25.0 2.14 0.25
3 40.0 2.14 0.25
3 63.0 2.14 0.25
3 100.0 2.14 -0.25
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 -0.25
3 630.0 2.14 0.0
3 1000.0 2.14 0.25
3 1600.0 2.14 -0.25
3 2500.0 2.14 -0.25
3 4000.0 2.14 0.0
3 6300.0 2.14 0.0
3 10000.0 2.14 -0.25
3 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Ascend Acoustics Sierra-2EX V2
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.25
3 80.0 4.32 0.0
3 100.0 4.32 0.0
3 125.0 4.32 0.0
3 160.0 4.32 0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.0
3 500.0 4.32 0.0
3 630.0 4.32 0.0
3 800.0 4.32 0.0
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.25
3 2000.0 4.32 0.25
3 2500.0 4.32 0.25
3 3150.0 4.32 0.5
3 4000.0 4.32 0.25
3 5000.0 4.32 0.5
3 6300.0 4.32 0.5
3 8000.0 4.32 0.25
3 10000.0 4.32 0.25
3 12000.0 4.32 0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Ascend Acoustics Sierra-2EX V2: comparison between EQs
Ascend Acoustics Sierra-2EX V2

Comparison betweens various EQs

Ascend Acoustics Sierra-2EX V2

Improvements made by EQ
