What we know about the measurement:

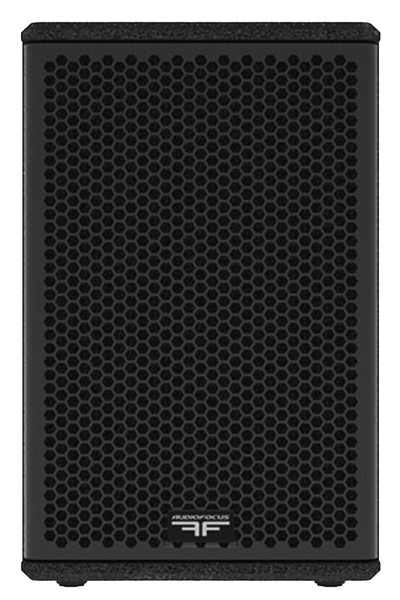

Audiofocus VENU 15a is an active liveportable that cost around 3220 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Audiofocus.
  • Format of the data is a GLL file .
  • -3dB (resp. -6db) point v.s. reference is at 106.0Hz (resp. 100.0Hz).
  • Reference level is normalised to -0.9dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 10.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -1.71 and would be 1.96 with a perfect subwoofer.
      • Details: NBD: ON 1.409, LW 1.244, SP 1.18, PIR 1.183; SM: SP0.685, PIR0.57; LFQ 3.383, LFX 102Hz
    • Tonality (Preference) Score is -0.09 with an EQ and would be 3.58 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 1.213, LW 0.981, SP 0.949, PIR 0.914; SM: SP0.815, PIR0.713; LFQ 3.383, LFX 102Hz
  • Vendor specifications:
    • Dispersion: 100° horizontal and 60° vertical.
    • SPL
      • peak: 136 dB
    • Size
      • Width 426mm
      • Height 638mm
      • Depth 412 mm)
    • Weight 22.5 kg
Audiofocus VENU 15a
AutomaticEQ (IIR)
Set preamp gain to: -2.6dB.
Type Freq Q Gain
3 432.0 1.29 -2.99
3 739.0 2.94 2.71
3 873.0 2.97 2.82
3 1648.0 2.96 2.96
3 2813.0 1.7 2.86
3 5310.0 2.63 2.87
3 7173.0 2.97 -2.19
3 10361.0 2.62 -2.77
5 14965.0 0.4 -1.38
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Audiofocus VENU 15a filters_auto_eq

AutomaticEQ

Audiofocus VENU 15a filters_eq_full

Target v.s. EQ

Audiofocus VENU 15a
Graphic EQ 15 bands
Set preamp gain to: -1.4dB.
Type Freq Q Gain
3 25.0 2.14 0.5
3 40.0 2.14 0.5
3 63.0 2.14 0.5
3 100.0 2.14 0.5
3 160.0 2.14 0.0
3 250.0 2.14 0.0
3 400.0 2.14 -0.75
3 630.0 2.14 0.25
3 1000.0 2.14 0.25
3 1600.0 2.14 1.0
3 2500.0 2.14 1.0
3 4000.0 2.14 0.75
3 6300.0 2.14 0.75
3 10000.0 2.14 0.0
3 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Audiofocus VENU 15a
Graphic EQ 31 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.25
3 31.0 4.32 0.25
3 40.0 4.32 0.25
3 50.0 4.32 0.25
3 63.0 4.32 0.25
3 80.0 4.32 0.25
3 100.0 4.32 0.25
3 125.0 4.32 0.0
3 160.0 4.32 0.0
3 200.0 4.32 -0.25
3 250.0 4.32 0.0
3 315.0 4.32 -0.25
3 400.0 4.32 -0.5
3 500.0 4.32 -0.5
3 630.0 4.32 0.0
3 800.0 4.32 0.5
3 1000.0 4.32 0.25
3 1250.0 4.32 0.25
3 1600.0 4.32 0.75
3 2000.0 4.32 0.5
3 2500.0 4.32 0.75
3 3150.0 4.32 0.75
3 4000.0 4.32 0.5
3 5000.0 4.32 0.75
3 6300.0 4.32 0.5
3 8000.0 4.32 0.25
3 10000.0 4.32 0.0
3 12000.0 4.32 0.25
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Audiofocus VENU 15a: comparison between EQs
Audiofocus VENU 15a

Comparison betweens various EQs

Audiofocus VENU 15a

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
