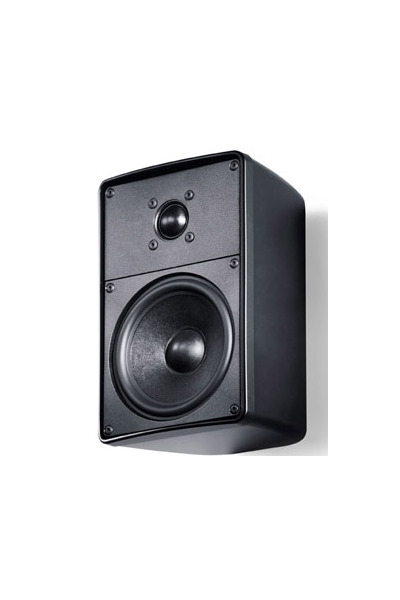

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 86.4dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 117.2Hz (resp. 98.1Hz).
-
Reference level is normalised to -0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 3.4dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 0.76
and would be 4.34 with a
perfect subwoofer.
- Details:
NBD: ON 0.825,
LW 0.666, SP
0.471, PIR
0.546; SM:
SP0.627,
PIR0.148; LFQ
0.616, LFX 98Hz
- Tonality (Preference) Score is 4.22
with an EQ and would be 7.29 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.579,
LW 0.452, SP
0.452, PIR
0.357; SM:
SP0.925,
PIR0.914; LFQ 0.504, LFX 74Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -4.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
85.0 |
1.4 |
3.0 |
| 3 |
166.0 |
1.14 |
-4.06 |
| 3 |
172.0 |
0.3 |
2.99 |
| 3 |
1288.0 |
2.98 |
-2.65 |
| 3 |
3289.0 |
1.79 |
-1.4 |
| 3 |
5536.0 |
2.36 |
-3.57 |
| 3 |
12736.0 |
1.65 |
-7.33 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
375.0 |
3.0 |
0.9 |
| 3 |
539.0 |
13.0 |
0.7 |
| 3 |
634.0 |
5.0 |
-2.9 |
| 3 |
655.0 |
5.0 |
4.4 |
| 3 |
777.0 |
15.0 |
-0.8 |
| 3 |
1159.0 |
5.0 |
2.5 |
| 3 |
1267.0 |
1.0 |
-3.8 |
| 3 |
1357.0 |
5.0 |
-2.8 |
| 3 |
1529.0 |
5.0 |
3.0 |
| 3 |
1915.0 |
18.0 |
1.1 |
| 3 |
2105.0 |
14.0 |
-1.1 |
| 3 |
2491.0 |
3.737 |
10.0 |
| 3 |
2494.0 |
5.0 |
-11.5 |
| 3 |
2964.0 |
5.0 |
-1.8 |
| 3 |
3750.0 |
12.0 |
-0.8 |
| 3 |
6073.0 |
1.0 |
-1.4 |
| 3 |
8034.0 |
5.0 |
2.6 |
| 3 |
9087.0 |
3.607 |
3.6 |
| 3 |
12709.0 |
1.0 |
-7.0 |
| 3 |
16255.0 |
5.0 |
3.1 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.5 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.25 |
| 3 |
630.0 |
2.14 |
0.25 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
-0.25 |
| 3 |
4000.0 |
2.14 |
-0.5 |
| 3 |
6300.0 |
2.14 |
-0.75 |
| 3 |
10000.0 |
2.14 |
-0.75 |
| 3 |
16000.0 |
2.14 |
-0.75 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.5 |
| 3 |
125.0 |
4.32 |
0.25 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.25 |
| 3 |
400.0 |
4.32 |
0.25 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
-0.5 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
-0.25 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
-0.25 |
| 3 |
6300.0 |
4.32 |
-0.25 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
-0.25 |
| 3 |
12000.0 |
4.32 |
-1.0 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
