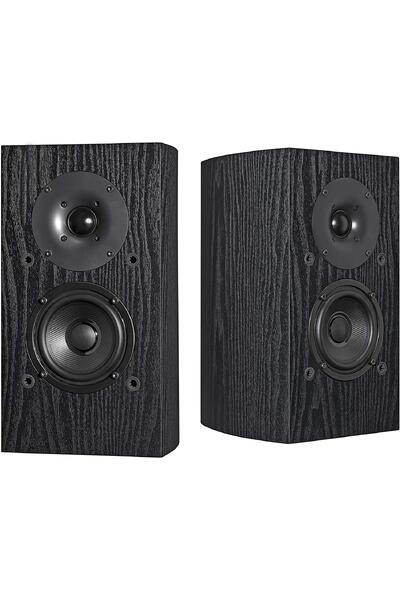

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 83.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 71.8Hz (resp. 63.0Hz).
-
Reference level is normalised to -0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 1.9dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-80.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.18
and would be 7.93 with a
perfect subwoofer.
- Details:
NBD: ON 0.356,
LW 0.299, SP
0.382, PIR
0.292; SM:
SP0.915,
PIR0.865; LFQ
0.288, LFX 62Hz
- Tonality (Preference) Score is 6.03
with an EQ and would be 8.64 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.295,
LW 0.22, SP
0.271, PIR
0.172; SM:
SP0.955,
PIR0.954; LFQ 0.288, LFX 58Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -3.0dB.
|
| Type |
Freq |
Q |
Gain |
| 5 |
129.0 |
0.82 |
2.58 |
| 3 |
342.0 |
2.99 |
1.21 |
| 3 |
646.0 |
2.53 |
2.19 |
| 3 |
817.0 |
1.86 |
-1.19 |
| 3 |
2153.0 |
1.0 |
0.8 |
| 3 |
3110.0 |
2.64 |
-1.2 |
| 3 |
3676.0 |
2.31 |
0.63 |
| 3 |
7669.0 |
2.94 |
2.04 |
| 3 |
14473.0 |
1.04 |
2.94 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
348.0 |
9.0 |
1.1 |
| 3 |
536.0 |
20.0 |
0.8 |
| 3 |
617.0 |
8.0 |
1.1 |
| 3 |
778.0 |
11.0 |
-0.5 |
| 3 |
935.0 |
4.0 |
-1.1 |
| 3 |
1253.0 |
7.0 |
-0.5 |
| 3 |
1578.0 |
12.0 |
-0.8 |
| 3 |
1771.0 |
8.0 |
-0.6 |
| 3 |
2074.0 |
18.0 |
-0.9 |
| 3 |
2380.0 |
20.0 |
-0.6 |
| 3 |
2800.0 |
7.0 |
-0.6 |
| 3 |
3150.0 |
5.2 |
-1.6 |
| 3 |
3540.0 |
8.0 |
-0.9 |
| 3 |
4140.0 |
7.5 |
-0.7 |
| 3 |
4831.0 |
3.5 |
-1.1 |
| 3 |
6640.0 |
5.0 |
-0.8 |
| 3 |
7620.0 |
9.0 |
0.9 |
| 3 |
8600.0 |
10.0 |
-0.7 |
| 3 |
10600.0 |
5.0 |
-0.8 |
| 3 |
14500.0 |
2.8 |
1.1 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.5 |
| 3 |
100.0 |
2.14 |
0.25 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.25 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
-0.25 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.5 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.8dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.5 |
| 3 |
80.0 |
4.32 |
0.5 |
| 3 |
100.0 |
4.32 |
0.25 |
| 3 |
125.0 |
4.32 |
0.25 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
0.0 |
| 3 |
400.0 |
4.32 |
0.0 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.25 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
0.0 |
| 3 |
8000.0 |
4.32 |
0.25 |
| 3 |
10000.0 |
4.32 |
0.0 |
| 3 |
12000.0 |
4.32 |
0.25 |
| 3 |
16000.0 |
4.32 |
0.75 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
