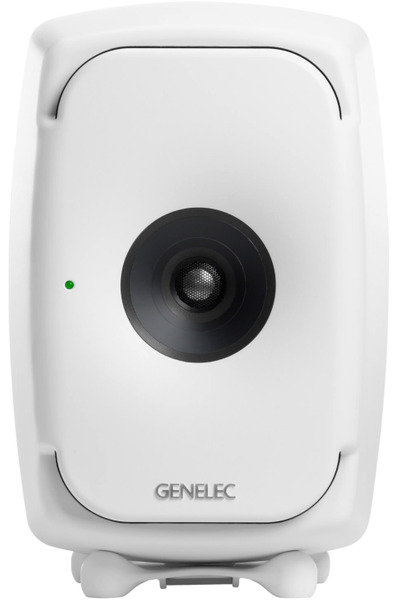

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
-3dB (resp. -6db) point v.s. reference is at 47.6Hz (resp. 39.6Hz).
-
Reference level is normalised to -0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 1.2dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-60.0°, 60.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 6.75
and would be 8.52 with a
perfect subwoofer.
- Details:
NBD: ON 0.29,
LW 0.254, SP
0.23, PIR
0.209; SM:
SP0.962,
PIR0.944; LFQ
0.717, LFX 37Hz
- Tonality (Preference) Score is 7.15
with an EQ and would be 8.85 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.238,
LW 0.196, SP
0.193, PIR
0.161; SM:
SP0.969,
PIR0.968; LFQ 0.717, LFX 35Hz
- Vertical measurement
- Link to Original review.
-
Vendor specifications:
- Size
- Width 237mm
- Height 370mm
- Depth 243 mm)
- Weight 9.8 kg
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
44.0 |
1.17 |
2.7 |
| 3 |
178.0 |
1.78 |
0.7 |
| 3 |
424.0 |
2.97 |
-2.68 |
| 3 |
470.0 |
1.8 |
2.27 |
| 3 |
1954.0 |
2.91 |
0.42 |
| 3 |
4654.0 |
2.99 |
0.65 |
| 3 |
11085.0 |
2.93 |
0.04 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -1.1dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
323.0 |
10.0 |
-0.4 |
| 3 |
379.0 |
20.0 |
-0.8 |
| 3 |
418.0 |
10.0 |
-1.1 |
| 3 |
530.0 |
8.0 |
0.7 |
| 3 |
609.0 |
20.0 |
0.5 |
| 3 |
701.0 |
5.0 |
0.5 |
| 3 |
904.0 |
8.0 |
-0.4 |
| 3 |
1100.0 |
5.8 |
0.7 |
| 3 |
1295.0 |
8.5 |
-0.7 |
| 3 |
1550.0 |
10.0 |
-0.4 |
| 3 |
1695.0 |
15.0 |
0.5 |
| 3 |
1960.0 |
15.0 |
1.1 |
| 3 |
2240.0 |
19.0 |
0.8 |
| 3 |
3780.0 |
10.0 |
0.3 |
| 3 |
4530.0 |
9.0 |
0.4 |
| 3 |
5820.0 |
8.0 |
-0.9 |
| 3 |
6680.0 |
5.0 |
0.4 |
| 3 |
8660.0 |
10.0 |
-0.4 |
| 3 |
10170.0 |
12.0 |
-0.5 |
| 3 |
11980.0 |
12.0 |
-0.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.6dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.5 |
| 3 |
40.0 |
2.14 |
0.5 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.0 |
| 3 |
160.0 |
2.14 |
0.0 |
| 3 |
250.0 |
2.14 |
0.0 |
| 3 |
400.0 |
2.14 |
-0.25 |
| 3 |
630.0 |
2.14 |
0.25 |
| 3 |
1000.0 |
2.14 |
0.25 |
| 3 |
1600.0 |
2.14 |
0.0 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
0.25 |
| 3 |
6300.0 |
2.14 |
0.0 |
| 3 |
10000.0 |
2.14 |
0.0 |
| 3 |
16000.0 |
2.14 |
0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.5 |
| 3 |
31.0 |
4.32 |
0.5 |
| 3 |
40.0 |
4.32 |
0.5 |
| 3 |
50.0 |
4.32 |
0.5 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
0.0 |
| 3 |
125.0 |
4.32 |
0.0 |
| 3 |
160.0 |
4.32 |
0.0 |
| 3 |
200.0 |
4.32 |
0.0 |
| 3 |
250.0 |
4.32 |
0.0 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
0.25 |
| 3 |
630.0 |
4.32 |
0.25 |
| 3 |
800.0 |
4.32 |
0.0 |
| 3 |
1000.0 |
4.32 |
0.0 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.0 |
| 3 |
2000.0 |
4.32 |
0.0 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
0.0 |
| 3 |
4000.0 |
4.32 |
0.0 |
| 3 |
5000.0 |
4.32 |
0.0 |
| 3 |
6300.0 |
4.32 |
-0.25 |
| 3 |
8000.0 |
4.32 |
-0.25 |
| 3 |
10000.0 |
4.32 |
-0.25 |
| 3 |
12000.0 |
4.32 |
-0.25 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
