What we know about the measurement:

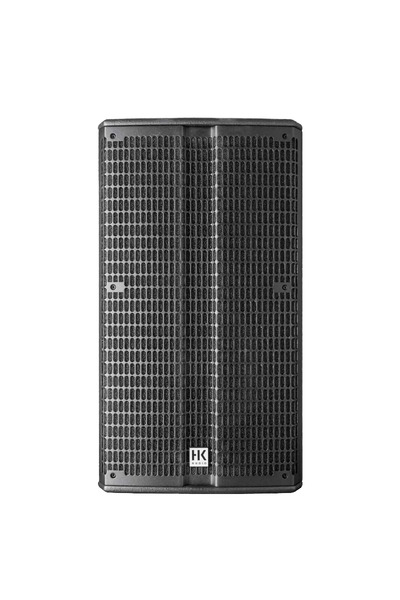

HK Audio LINEAR 5 112 X is a passive liveportable that cost around 645 USD each.

  • Quality of the measurement data is high.
  • Origin of the data is HK Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 102.8dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 82.8dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 103.0Hz (resp. 82.5Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 3.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 2.37 and would be 5.68 with a perfect subwoofer.
      • Details: NBD: ON 0.663, LW 0.625, SP 0.725, PIR 0.66; SM: SP0.875, PIR0.703; LFQ 1.719, LFX 85Hz
    • Tonality (Preference) Score is 4.13 with an EQ and would be 7.21 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.456, LW 0.424, SP 0.531, PIR 0.447; SM: SP0.927, PIR0.862; LFQ 1.719, LFX 75Hz
  • Link to original Review: sos review. .
  • Vendor specifications:
    • Dispersion: 60° horizontal and 40° vertical.
    • Sensitivity 98 dB
    • Impedance 8 Ohm
    • SPL
      • continuous: 127 dB
      • peak: 135 dB
    • Size
      • Width 365mm
      • Height 668mm
      • Depth 370 mm)
    • Weight 19.5 kg
HK Audio LINEAR 5 112 X
AutomaticEQ (IIR)
Set preamp gain to: -3.0dB.
Type Freq Q Gain
5 103.0 1.05 2.97
3 739.0 1.51 2.94
3 1103.0 2.97 -1.82
3 1762.0 2.77 1.57
3 2153.0 2.91 -2.99
3 2631.0 2.04 0.62
3 5677.0 2.98 2.9
3 7417.0 0.89 -2.08
3 12662.0 0.54 0.47
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

HK Audio LINEAR 5 112 X filters_auto_eq

AutomaticEQ

HK Audio LINEAR 5 112 X filters_eq_full

Target v.s. EQ

HK Audio LINEAR 5 112 X
Graphic EQ 15 bands
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 25.0 2.14 0.75
3 40.0 2.14 0.75
3 63.0 2.14 0.75
3 100.0 2.14 0.5
3 160.0 2.14 -0.25
3 250.0 2.14 0.5
3 400.0 2.14 0.5
3 630.0 2.14 0.75
3 1000.0 2.14 0.25
3 1600.0 2.14 0.5
3 2500.0 2.14 0.0
3 4000.0 2.14 0.25
3 6300.0 2.14 0.25
3 10000.0 2.14 0.25
3 16000.0 2.14 0.5
Download

These EQ is designed for a 15 bands graphical EQ.

HK Audio LINEAR 5 112 X
Graphic EQ 31 bands
Set preamp gain to: -0.8dB.
Type Freq Q Gain
3 20.0 4.32 0.0
3 25.0 4.32 0.5
3 31.0 4.32 0.5
3 40.0 4.32 0.5
3 50.0 4.32 0.5
3 63.0 4.32 0.5
3 80.0 4.32 0.5
3 100.0 4.32 0.5
3 125.0 4.32 0.0
3 160.0 4.32 -0.25
3 200.0 4.32 0.25
3 250.0 4.32 0.25
3 315.0 4.32 0.25
3 400.0 4.32 0.25
3 500.0 4.32 0.25
3 630.0 4.32 0.5
3 800.0 4.32 0.5
3 1000.0 4.32 0.0
3 1250.0 4.32 0.0
3 1600.0 4.32 0.25
3 2000.0 4.32 0.0
3 2500.0 4.32 0.0
3 3150.0 4.32 0.25
3 4000.0 4.32 0.25
3 5000.0 4.32 0.25
3 6300.0 4.32 0.25
3 8000.0 4.32 0.0
3 10000.0 4.32 0.25
3 12000.0 4.32 0.0
3 16000.0 4.32 0.25
3 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

HK Audio LINEAR 5 112 X: comparison between EQs
HK Audio LINEAR 5 112 X

Comparison betweens various EQs

HK Audio LINEAR 5 112 X

Improvements made by EQ
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
CEA2034
On Axis
Early Reflections
Estimated In-Room Response
Horizontal Reflections
Vertical Reflections
SPL Horizontal
SPL Vertical
SPL Horizontal Normalized
SPL Vertical Normalized
SPL Horizontal Contour
SPL Vertical Contour
SPL Horizontal Contour Normalized
SPL Vertical Contour Normalized
SPL Horizontal Contour 3D
SPL Vertical Contour 3D
SPL Horizontal Contour Normalized 3D
SPL Vertical Contour Normalized 3D
SPL Horizontal Radar
SPL Vertical Radar
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
