What we know about the measurement:

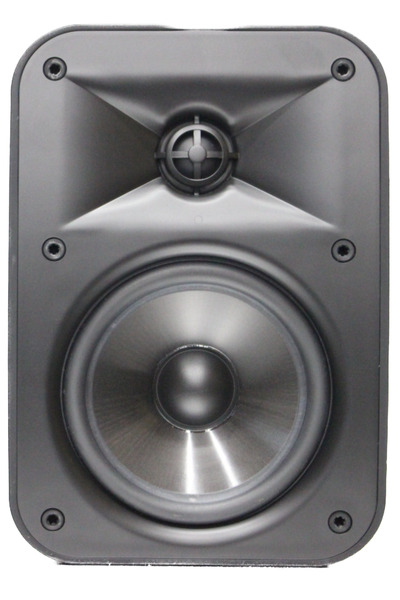

JBL Control X Wireless is an active outdoor that cost around 500 USD for a pair.

  • Quality of the measurement data is medium.
  • Origin of the data is Misc.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 75.5Hz (resp. 66.3Hz).
  • Reference level is normalised to 0.3dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.9dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 40.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.54 and would be 7.38 with a perfect subwoofer.
      • Details: NBD: ON 0.338, LW 0.335, SP 0.364, PIR 0.335; SM: SP0.851, PIR0.667; LFQ 0.684, LFX 66Hz
    • Tonality (Preference) Score is 6.02 with an EQ and would be 8.6 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.223, LW 0.208, SP 0.298, PIR 0.244; SM: SP0.965, PIR0.949; LFQ 0.684, LFX 57Hz
  • Link to Original review.
JBL Control X Wireless
AutomaticEQ (IIR)
Set preamp gain to: -3.1dB.
Type Freq Q Gain
3 58.0 2.22 2.89
3 113.0 2.31 2.19
3 765.0 2.19 2.2
3 1121.0 2.97 1.03
3 2023.0 0.27 -1.22
3 4495.0 2.83 -1.41
3 9989.0 2.01 -2.65
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

JBL Control X Wireless filters_auto_eq

AutomaticEQ

JBL Control X Wireless filters_eq_full

Target v.s. EQ

JBL Control X Wireless
AutomaticEQ LW (IIR)
Set preamp gain to: -2.5dB.
Type Freq Q Gain
3 113.0 2.27 2.52
3 475.0 2.95 0.58
3 807.0 1.94 1.59
3 2711.0 2.77 -0.53
3 6082.0 2.93 1.53
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

JBL Control X Wireless: comparison between EQs
JBL Control X Wireless

Comparison betweens various EQs

JBL Control X Wireless

Improvements made by EQ
