We have multiple measurements for this speaker. Click here to see the default one (which is higher quality if we have one measurement better than the others).
What we know about the measurement:

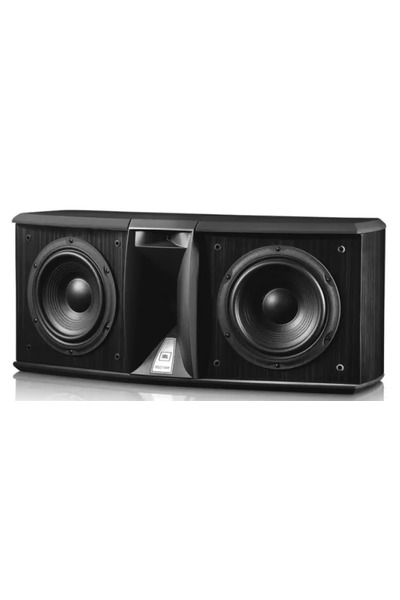

JBL Synthesis Array 880 is
a passive
center
that cost around 1600 USD
Quality of the measurement data is
high.
Origin of the data is ASR.
Format of the data is
generated by a Klippel NFS
.
-3dB (resp. -6db) point v.s. reference is at 77.6Hz (resp. 64.5Hz).
Reference level is normalised to 0.1dB
computed over the frequency range [300.0Hz,
5000.0Hz].
Frequency deviation is 2.7dB over the same frequency range.
Directivity
Horizontal directivity
is (-20.0°, 30.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
Vertical directivity
is (-40.0°, 50.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
Tonality (Preference) Score is 3.92
and would be 6.58 with a
perfect subwoofer.
Details:
NBD: ON 0.537,
LW 0.467, SP
0.482, PIR
0.437; SM:
SP0.806,
PIR0.668; LFQ
1.796, LFX 60Hz
Tonality (Preference) Score is 4.91
with an EQ and would be 7.27 with a
perfect subwoofer and the same EQ.
Details:
NBD: ON 0.495,
LW 0.434, SP
0.442, PIR
0.391; SM:
SP0.907,
PIR0.86; LFQ 1.796, LFX 51Hz
