What we know about the measurement:

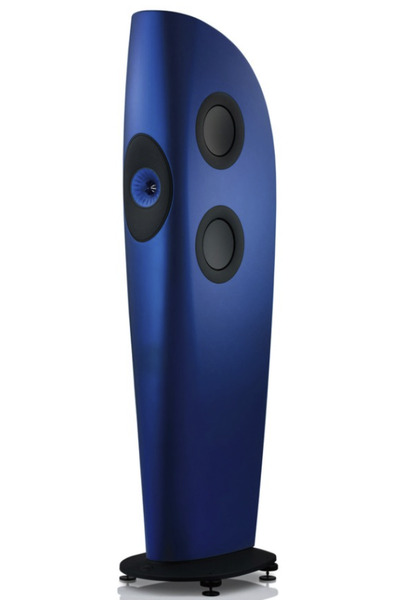

KEF Blade 2 Meta is a passive floorstanders that cost around 25000 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.8dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 31.5Hz (resp. 29.3Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 7.07 and would be 8.19 with a perfect subwoofer.
      • Details: NBD: ON 0.322, LW 0.295, SP 0.275, PIR 0.256; SM: SP0.953, PIR0.895; LFQ 1.098, LFX 26Hz
    • Tonality (Preference) Score is 7.68 with an EQ and would be 8.58 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.27, LW 0.247, SP 0.255, PIR 0.215; SM: SP0.97, PIR0.956; LFQ 1.098, LFX 23Hz
  • Link to original Review: eac review. Links to other reviews: yt review , white_paper review , str review , whf review , ssh review .
  • Vendor specifications:
    • Sensitivity 88 dB
    • Impedance 3.2 Ohm
    • SPL
      • peak: 116 dB
    • Size
      • Width 338mm
      • Height 1461mm
      • Depth 475 mm)
    • Weight 35.3 kg
KEF Blade 2 Meta
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
3 20.0 0.76 2.84
3 130.0 1.03 -1.48
3 197.0 1.48 2.16
3 1586.0 2.81 1.09
3 5536.0 0.8 -0.54
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

KEF Blade 2 Meta filters_auto_eq

AutomaticEQ

KEF Blade 2 Meta filters_eq_full

Target v.s. EQ

KEF Blade 2 Meta
AutomaticEQ LW (IIR)
Set preamp gain to: -1.1dB.
Type Freq Q Gain
3 51.0 1.7 1.23
3 88.0 2.04 -1.07
3 144.0 1.67 -2.18
3 178.0 1.18 2.32
3 942.0 0.91 -1.35
3 1642.0 1.17 1.31
3 14134.0 2.17 0.88
Download

These EQ optimise for a flat listening window and is a good start for near field listening like on your desk.

KEF Blade 2 Meta: comparison between EQs
KEF Blade 2 Meta

Comparison betweens various EQs

KEF Blade 2 Meta

Improvements made by EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
