What we know about the measurement:

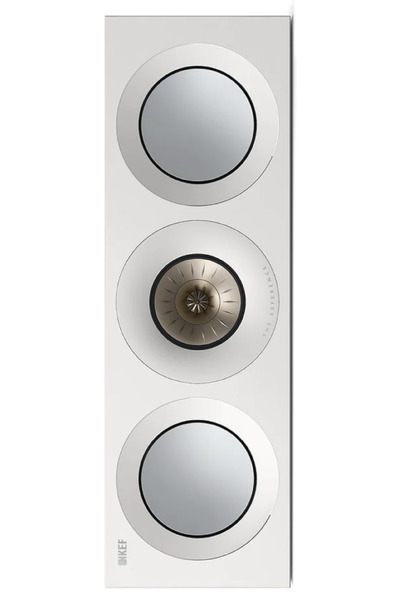

KEF Reference 2C Meta is a passive center that cost around 5500 USD

  • Quality of the measurement data is medium.
  • Origin of the data is KEF.
  • Format of the data is .
  • Sensitivity: 87.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 64.9Hz (resp. 54.2Hz).
  • Reference level is normalised to 0.6dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.6dB over the same frequency range.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 5.55 and would be 7.94 with a perfect subwoofer.
      • Details: NBD: ON 0.389, LW 0.252, SP 0.345, PIR 0.288; SM: SP0.957, PIR0.899; LFQ 1.152, LFX 51Hz
    • Tonality (Preference) Score is 6.48 with an EQ and would be 8.51 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.292, LW 0.203, SP 0.286, PIR 0.219; SM: SP0.975, PIR0.952; LFQ 0.922, LFX 42Hz
  • Note: the off-axis average curves are truncated at 200Hz as this is close to the LF cut-off limit of our anechoic chamber. The on-axis LF response has been compensated using ground plane measurements carried out in free-field and is therefore valid only for that singular curve..
KEF Reference 2C Meta
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 44.0 0.85 3.0
PK 102.0 1.82 -1.83
PK 689.0 0.36 -1.39
PK 1046.0 1.45 2.94
PK 1333.0 2.92 -2.65
PK 5347.0 1.19 -1.16
PK 9001.0 2.86 -0.96
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

KEF Reference 2C Meta filters_auto_eq

AutomaticEQ

KEF Reference 2C Meta filters_eq_full

Target v.s. EQ

KEF Reference 2C Meta
Graphic EQ 15 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.5
PK 63.0 2.14 0.5
PK 100.0 2.14 -0.25
PK 160.0 2.14 0.0
PK 250.0 2.14 -0.25
PK 400.0 2.14 0.0
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.25
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 -0.25
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.5
PK 10000.0 2.14 0.0
PK 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

KEF Reference 2C Meta
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.0
PK 100.0 4.32 -0.25
PK 125.0 4.32 -0.25
PK 160.0 4.32 0.0
PK 200.0 4.32 0.0
PK 250.0 4.32 -0.25
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.25
PK 1250.0 4.32 -0.25
PK 1600.0 4.32 -0.25
PK 2000.0 4.32 0.0
PK 2500.0 4.32 -0.25
PK 3150.0 4.32 -0.25
PK 4000.0 4.32 -0.25
PK 5000.0 4.32 -0.25
PK 6300.0 4.32 -0.5
PK 8000.0 4.32 0.0
PK 10000.0 4.32 0.0
PK 12000.0 4.32 0.0
PK 16000.0 4.32 -0.25
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.

KEF Reference 2C Meta: comparison between EQs
KEF Reference 2C Meta

Comparison betweens various EQs

KEF Reference 2C Meta

Improvements made by EQ
CEA2034
On Axis
Estimated In-Room Response
CEA2034
On Axis
Estimated In-Room Response
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
