What we know about the measurement:

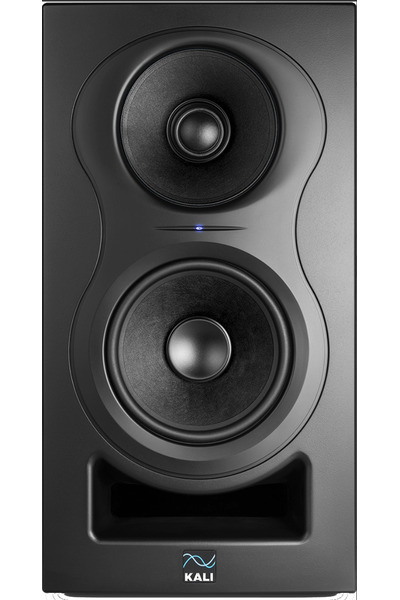

Kali IN-5 is an active bookshelves that cost around 700 USD for a pair.

Quality of the measurement data is high.
Origin of the data is ErinsAudioCorner.
Format of the data is generated by a Klippel NFS .
-3dB (resp. -6db) point v.s. reference is at 45.4Hz (resp. 42.5Hz).
Reference level is normalised to 0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
Frequency deviation is 1.8dB over the same frequency range.
Directivity
- Horizontal directivity is (-60.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
- Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
Tonality (Preference) Score
- Tonality (Preference) Score is 5.22 and would be 7.23 with a perfect subwoofer.
  - Details: NBD: ON 0.487, LW 0.431, SP 0.338, PIR 0.34; SM: SP0.914, PIR0.769; LFQ 0.886, LFX 42Hz
- Tonality (Preference) Score is 5.97 with an EQ and would be 7.85 with a perfect subwoofer and the same EQ.
  - Details: NBD: ON 0.462, LW 0.352, SP 0.286, PIR 0.264; SM: SP0.954, PIR0.91; LFQ 0.886, LFX 39Hz
Link to original Review: eac review. Links to other reviews: asr review .
Vendor specifications:
- Size
  - Width 206mm
  - Height 382mm
  - Depth 286 mm)
- Weight 8.4 kg

Kali IN-5

Type	Freq	Q	Gain
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
PK	37.0	1.67	2.92
PK	211.0	1.14	1.13
PK	1887.0	2.03	-1.14
PK	2406.0	2.84	1.55
PK	4654.0	3.0	-0.98
PK	11882.0	0.33	-1.39
PK	12301.0	2.4	3.0
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Kali IN-5 filters_auto_eq

AutomaticEQ

Kali IN-5 filters_eq_full

Target v.s. EQ

Kali IN-5

Type	Freq	Q	Gain
Graphic EQ 15 bands
Set preamp gain to: -0.6dB.
PK	25.0	2.14	0.5
PK	40.0	2.14	0.5
PK	63.0	2.14	0.25
PK	100.0	2.14	0.0
PK	160.0	2.14	0.25
PK	250.0	2.14	0.25
PK	400.0	2.14	0.0
PK	630.0	2.14	0.25
PK	1000.0	2.14	0.25
PK	1600.0	2.14	0.0
PK	2500.0	2.14	0.25
PK	4000.0	2.14	-0.25
PK	6300.0	2.14	0.0
PK	10000.0	2.14	0.0
PK	16000.0	2.14	-0.5
Download

These EQ is designed for a 15 bands graphical EQ.

Kali IN-5

Type	Freq	Q	Gain
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
PK	20.0	4.32	0.0
PK	25.0	4.32	0.5
PK	31.0	4.32	0.5
PK	40.0	4.32	0.5
PK	50.0	4.32	0.25
PK	63.0	4.32	0.25
PK	80.0	4.32	0.25
PK	100.0	4.32	0.0
PK	125.0	4.32	0.0
PK	160.0	4.32	0.25
PK	200.0	4.32	0.25
PK	250.0	4.32	0.25
PK	315.0	4.32	0.0
PK	400.0	4.32	0.0
PK	500.0	4.32	0.0
PK	630.0	4.32	0.0
PK	800.0	4.32	0.0
PK	1000.0	4.32	0.25
PK	1250.0	4.32	0.0
PK	1600.0	4.32	0.0
PK	2000.0	4.32	0.0
PK	2500.0	4.32	0.25
PK	3150.0	4.32	0.0
PK	4000.0	4.32	-0.25
PK	5000.0	4.32	0.0
PK	6300.0	4.32	0.0
PK	8000.0	4.32	0.0
PK	10000.0	4.32	0.0
PK	12000.0	4.32	0.5
PK	16000.0	4.32	-0.5
PK	20000.0	4.32	0.0
Download

These EQ is designed for a 31 bands graphical EQ.

Kali IN-5: comparison between EQs

Kali IN-5

Comparison betweens various EQs

Kali IN-5

Improvements made by EQ
