What we know about the measurement:

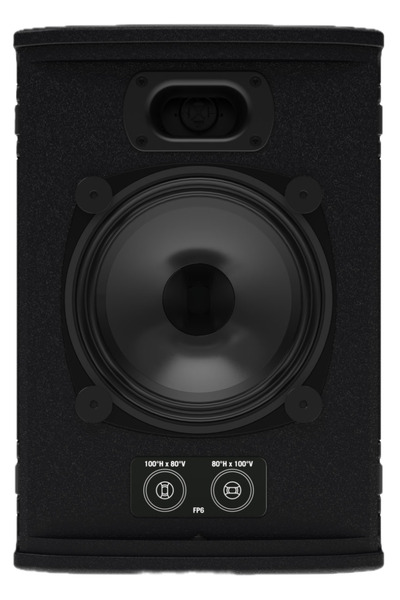

Martin Audio Flexpoint FP6 is a passive liveportable that cost around 860 USD each.

  • Quality of the measurement data is unknown.
  • Origin of the data is Martin Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 88.3dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 68.3dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 73.0Hz (resp. 67.0Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 5.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-30.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-40.0°, 30.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 1.28 and would be 4.09 with a perfect subwoofer.
      • Details: NBD: ON 0.833, LW 0.836, SP 1.006, PIR 0.942; SM: SP0.747, PIR0.562; LFQ 0.412, LFX 64Hz
  • Note: data looks valid between 125Hz and 12kHz maybe 16kHz..
  • Vendor specifications:
    • Dispersion: 100° horizontal and 80° vertical.
    • Sensitivity 91 dB
    • Impedance 16 Ohm
    • SPL
      • continuous: 113 dB
      • peak: 119 dB
    • Size
      • Width 220mm
      • Height 321mm
      • Depth 197 mm)
    • Weight 5.5 kg
