What we know about the measurement:

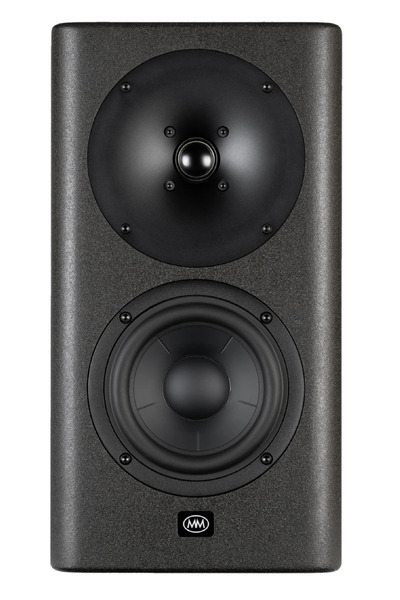

Mesanovic CDM65 is an active bookshelves that cost around 5300 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • -3dB (resp. -6db) point v.s. reference is at 36.6Hz (resp. 33.7Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 1.1dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-60.0°, 60.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-20.0°, 20.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 7.07 and would be 8.57 with a perfect subwoofer.
      • Details: NBD: ON 0.256, LW 0.203, SP 0.292, PIR 0.213; SM: SP0.965, PIR0.931; LFQ 0.843, LFX 32Hz
    • Tonality (Preference) Score is 7.42 with an EQ and would be 8.74 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.236, LW 0.185, SP 0.28, PIR 0.195; SM: SP0.976, PIR0.963; LFQ 0.843, LFX 29Hz
  • Link to original Review: eac review. Links to other reviews: asr review , asrold review .
  • Vendor specifications:
    • SPL
      • peak: 103 dB
    • Size
      • Width 203mm
      • Height 381mm
      • Depth 355 mm)
    • Weight 16 kg
Mesanovic CDM65
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
LS 47.0 0.56 2.91
PK 84.0 1.97 -0.07
PK 148.0 1.97 1.1
PK 511.0 0.41 0.58
PK 998.0 2.44 -0.28
PK 1822.0 1.53 0.73
PK 3930.0 2.05 0.6
PK 7930.0 1.19 -0.13
PK 14473.0 0.82 0.4
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Mesanovic CDM65 filters_auto_eq

AutomaticEQ

Mesanovic CDM65 filters_eq_full

Target v.s. EQ

Mesanovic CDM65
Graphic EQ 15 bands
Set preamp gain to: -0.5dB.
Type Freq Q Gain
PK 25.0 2.14 0.5
PK 40.0 2.14 0.25
PK 63.0 2.14 0.0
PK 100.0 2.14 0.0
PK 160.0 2.14 0.0
PK 250.0 2.14 0.0
PK 400.0 2.14 -0.25
PK 630.0 2.14 0.0
PK 1000.0 2.14 -0.25
PK 1600.0 2.14 -0.25
PK 2500.0 2.14 -0.25
PK 4000.0 2.14 -0.25
PK 6300.0 2.14 -0.25
PK 10000.0 2.14 -0.25
PK 16000.0 2.14 -0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Mesanovic CDM65
Graphic EQ 31 bands
Set preamp gain to: -0.7dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.25
PK 50.0 4.32 0.0
PK 63.0 4.32 0.0
PK 80.0 4.32 0.0
PK 100.0 4.32 0.0
PK 125.0 4.32 0.0
PK 160.0 4.32 0.25
PK 200.0 4.32 0.0
PK 250.0 4.32 0.0
PK 315.0 4.32 0.0
PK 400.0 4.32 0.0
PK 500.0 4.32 0.0
PK 630.0 4.32 0.0
PK 800.0 4.32 0.0
PK 1000.0 4.32 -0.25
PK 1250.0 4.32 0.0
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.0
PK 2500.0 4.32 0.0
PK 3150.0 4.32 0.0
PK 4000.0 4.32 0.0
PK 5000.0 4.32 0.0
PK 6300.0 4.32 -0.25
PK 8000.0 4.32 -0.25
PK 10000.0 4.32 -0.25
PK 12000.0 4.32 -0.25
PK 16000.0 4.32 0.0
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
