What we know about the measurement:

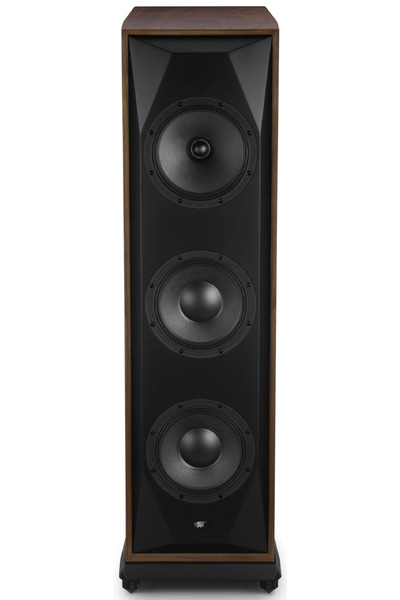

MoFi SourcePoint 888 is a passive floorstanders that cost around 2750 USD for a pair.

  • Quality of the measurement data is high.
  • Origin of the data is ErinsAudioCorner.
  • Format of the data is generated by a Klippel NFS .
  • Sensitivity: 86.2dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
  • -3dB (resp. -6db) point v.s. reference is at 34.4Hz (resp. 30.0Hz).
  • Reference level is normalised to -0.1dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.6dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 6.15 and would be 7.27 with a perfect subwoofer.
      • Details: NBD: ON 0.491, LW 0.417, SP 0.345, PIR 0.351; SM: SP0.917, PIR0.803; LFQ 1.561, LFX 26Hz
    • Tonality (Preference) Score is 6.85 with an EQ and would be 7.75 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.448, LW 0.376, SP 0.341, PIR 0.315; SM: SP0.958, PIR0.919; LFQ 1.561, LFX 23Hz
  • Link to original Review: eac review. Links to other reviews: yt review .
  • Vendor specifications:
    • Sensitivity 87 dB
    • Impedance 4.5 Ohm
    • Size
      • Width 320mm
      • Height 1070mm
      • Depth 410 mm)
    • Weight 43 kg
MoFi SourcePoint 888
AutomaticEQ (IIR)
Set preamp gain to: -2.9dB.
Type Freq Q Gain
3 24.0 0.9 2.99
3 60.0 2.42 -1.22
3 139.0 2.95 -1.26
3 454.0 2.98 0.92
3 910.0 2.05 -1.6
3 2579.0 2.64 1.07
3 16239.0 0.34 -1.27
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

MoFi SourcePoint 888 filters_auto_eq

AutomaticEQ

MoFi SourcePoint 888 filters_eq_full

Target v.s. EQ

Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
Frequency Frequency with EQ
;
