What we know about the measurement:

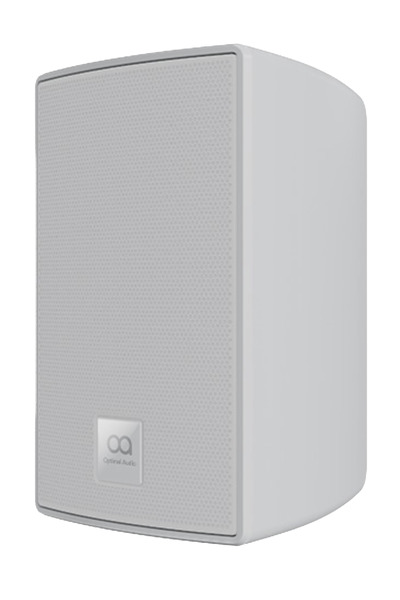

Optimal Audio Cuboid 3 is a passive bookshelves that cost around 85 USD each.

  • Quality of the measurement data is low.
  • Origin of the data is Optimal Audio.
  • Format of the data is a GLL file .
  • Sensitivity:
    • Sensitivity: 74.0dB (avg. 100Hz-1kHz for 2.83V estimated at 1m).
    • Sensitivity: 54.0dB computed at the measurement distance (10.0m) over the same frequency range.
  • -3dB (resp. -6db) point v.s. reference is at 115.0Hz (resp. 97.5Hz).
  • Reference level is normalised to 0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 6.8dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-10.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-30.0°, 10.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is -0.46 and would be 3.15 with a perfect subwoofer.
      • Details: NBD: ON 0.809, LW 0.816, SP 0.893, PIR 0.842; SM: SP0.062, PIR0.003; LFQ 0.482, LFX 100Hz
    • Tonality (Preference) Score is 3.37 with an EQ and would be 6.68 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.46, LW 0.46, SP 0.552, PIR 0.497; SM: SP0.801, PIR0.705; LFQ 0.37, LFX 85Hz
  • Vendor specifications:
    • Dispersion: 130° horizontal and 120° vertical.
    • Sensitivity 84 dB
    • Impedance 16 Ohm
    • Size
      • Width 120mm
      • Height 190mm
      • Depth 118 mm)
    • Weight 1.26 kg
Optimal Audio Cuboid 3
AutomaticEQ (IIR)
Set preamp gain to: -3.4dB.
Type Freq Q Gain
3 98.0 1.82 3.0
3 235.0 1.22 -3.74
3 1429.0 2.2 -2.35
3 2324.0 1.49 3.0
3 2765.0 2.2 3.0
3 11085.0 0.41 -8.33
3 13186.0 2.9 -8.93
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Optimal Audio Cuboid 3 filters_auto_eq

AutomaticEQ

Optimal Audio Cuboid 3 filters_eq_full

Target v.s. EQ
