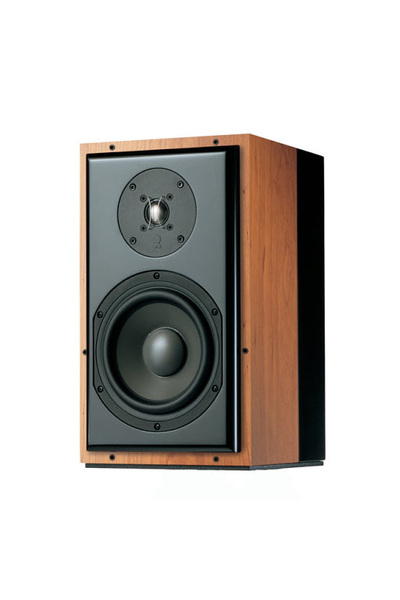

What we know about the measurement:
- Quality of the measurement data is
high.
-
Origin of the data is ASR.
-
Format of the data is
generated by a Klippel NFS
.
-
Sensitivity: 85.6dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 46.9Hz (resp. 41.0Hz).
-
Reference level is normalised to -0.0dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 2.1dB over the same frequency range.
- Directivity
-
Horizontal directivity
is (-70.0°, 70.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
-
Vertical directivity
is (-30.0°, 20.0°)
between 1kHz and 10kHz. Angle computed for +/-6dB.
- Tonality (Preference) Score
- Tonality (Preference) Score is 5.37
and would be 7.31 with a
perfect subwoofer.
- Details:
NBD: ON 0.346,
LW 0.333, SP
0.417, PIR
0.328; SM:
SP0.75,
PIR0.637; LFQ
0.588, LFX 41Hz
- Tonality (Preference) Score is 7.01
with an EQ and would be 8.67 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.261,
LW 0.228, SP
0.29, PIR
0.201; SM:
SP0.95,
PIR0.966; LFQ 0.588, LFX 35Hz
- Link to Original review.
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.7dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
46.0 |
0.41 |
2.96 |
| 3 |
121.0 |
0.68 |
0.03 |
| 3 |
153.0 |
0.84 |
-2.34 |
| 3 |
547.0 |
0.91 |
0.4 |
| 3 |
1141.0 |
1.82 |
-1.38 |
| 3 |
1541.0 |
1.74 |
1.51 |
| 3 |
1948.0 |
1.42 |
1.74 |
| 3 |
4803.0 |
2.98 |
-0.86 |
| 3 |
6069.0 |
0.44 |
-1.56 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
flipflop@ASR (IIR)
|
|
Set preamp gain to: -3.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
348.0 |
12.0 |
0.7 |
| 3 |
401.0 |
10.0 |
0.7 |
| 3 |
488.0 |
6.5 |
1.0 |
| 3 |
603.0 |
7.5 |
1.3 |
| 3 |
709.0 |
25.0 |
-0.3 |
| 3 |
785.0 |
8.0 |
1.0 |
| 3 |
1100.0 |
4.5 |
0.5 |
| 3 |
1422.0 |
6.0 |
2.1 |
| 3 |
1670.0 |
6.5 |
2.5 |
| 3 |
1930.0 |
8.5 |
2.5 |
| 3 |
2220.0 |
10.0 |
1.9 |
| 3 |
2530.0 |
10.0 |
1.3 |
| 3 |
2800.0 |
10.0 |
0.4 |
| 3 |
3980.0 |
15.0 |
0.4 |
| 3 |
4670.0 |
5.0 |
-1.9 |
| 3 |
6750.0 |
6.0 |
-1.1 |
| 3 |
8430.0 |
6.8 |
-0.9 |
| 3 |
11880.0 |
10.0 |
0.4 |
| 3 |
14620.0 |
3.0 |
1.0 |
| 6 |
19800.0 |
1.5772935127949521 |
-2.8 |
|
Download
|
These EQ is designed by ASR member flipflop.
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.3dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
25.0 |
2.14 |
0.25 |
| 3 |
40.0 |
2.14 |
0.25 |
| 3 |
63.0 |
2.14 |
0.25 |
| 3 |
100.0 |
2.14 |
0.0 |
| 3 |
160.0 |
2.14 |
-0.25 |
| 3 |
250.0 |
2.14 |
-0.25 |
| 3 |
400.0 |
2.14 |
0.0 |
| 3 |
630.0 |
2.14 |
0.0 |
| 3 |
1000.0 |
2.14 |
-0.25 |
| 3 |
1600.0 |
2.14 |
0.25 |
| 3 |
2500.0 |
2.14 |
0.0 |
| 3 |
4000.0 |
2.14 |
-0.25 |
| 3 |
6300.0 |
2.14 |
-0.25 |
| 3 |
10000.0 |
2.14 |
-0.25 |
| 3 |
16000.0 |
2.14 |
-0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.4dB.
|
| Type |
Freq |
Q |
Gain |
| 3 |
20.0 |
4.32 |
0.0 |
| 3 |
25.0 |
4.32 |
0.25 |
| 3 |
31.0 |
4.32 |
0.25 |
| 3 |
40.0 |
4.32 |
0.25 |
| 3 |
50.0 |
4.32 |
0.25 |
| 3 |
63.0 |
4.32 |
0.25 |
| 3 |
80.0 |
4.32 |
0.0 |
| 3 |
100.0 |
4.32 |
0.0 |
| 3 |
125.0 |
4.32 |
-0.25 |
| 3 |
160.0 |
4.32 |
-0.5 |
| 3 |
200.0 |
4.32 |
-0.5 |
| 3 |
250.0 |
4.32 |
-0.25 |
| 3 |
315.0 |
4.32 |
-0.25 |
| 3 |
400.0 |
4.32 |
-0.25 |
| 3 |
500.0 |
4.32 |
0.0 |
| 3 |
630.0 |
4.32 |
0.0 |
| 3 |
800.0 |
4.32 |
-0.25 |
| 3 |
1000.0 |
4.32 |
-0.25 |
| 3 |
1250.0 |
4.32 |
0.0 |
| 3 |
1600.0 |
4.32 |
0.25 |
| 3 |
2000.0 |
4.32 |
0.25 |
| 3 |
2500.0 |
4.32 |
0.0 |
| 3 |
3150.0 |
4.32 |
-0.25 |
| 3 |
4000.0 |
4.32 |
-0.5 |
| 3 |
5000.0 |
4.32 |
-0.5 |
| 3 |
6300.0 |
4.32 |
-0.5 |
| 3 |
8000.0 |
4.32 |
-0.5 |
| 3 |
10000.0 |
4.32 |
-0.25 |
| 3 |
12000.0 |
4.32 |
-0.25 |
| 3 |
16000.0 |
4.32 |
-0.25 |
| 3 |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
