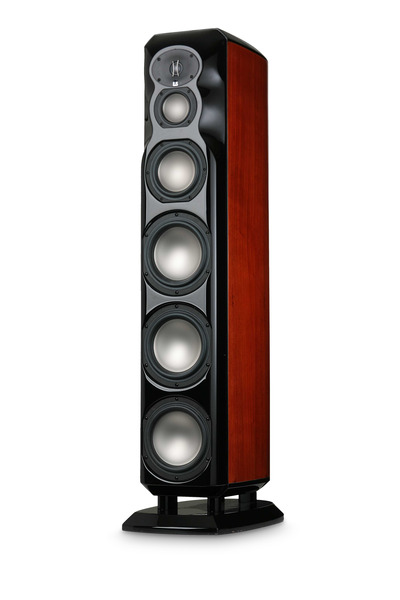

What we know about the measurement:
- Quality of the measurement data is
medium.
-
Origin of the data is Revel.
-
Format of the data is
a scanned image
.
-
Sensitivity: 85.3dB (avg. 100Hz-1kHz for 2.83V measured at 1m).
-
-3dB (resp. -6db) point v.s. reference is at 31.8Hz (resp. 26.9Hz).
-
Reference level is normalised to 0.2dB
computed over the frequency range [300.0Hz,
5000.0Hz].
-
Frequency deviation is 1.7dB over the same frequency range.
- Tonality (Preference) Score
- Tonality (Preference) Score is 6.28
and would be 7.23 with a
perfect subwoofer.
- Details:
NBD: ON 0.512,
LW 0.399, SP
0.369, PIR
0.323; SM:
SP0.846,
PIR0.774; LFQ
1.399, LFX 24Hz
- Tonality (Preference) Score is 7.36
with an EQ and would be 8.26 with a
perfect subwoofer and the same EQ.
- Details:
NBD: ON 0.391,
LW 0.271, SP
0.233, PIR
0.177; SM:
SP0.928,
PIR0.898; LFQ 1.399, LFX 23Hz
|
AutomaticEQ (IIR)
|
|
Set preamp gain to: -2.8dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
40.0 |
0.74 |
2.96 |
| PK |
121.0 |
1.37 |
-2.57 |
| PK |
207.0 |
2.73 |
-1.44 |
| PK |
391.0 |
2.5 |
-1.81 |
| PK |
462.0 |
2.99 |
1.97 |
| PK |
2226.0 |
2.4 |
2.2 |
| PK |
4345.0 |
2.49 |
1.57 |
| PK |
5310.0 |
0.87 |
-1.71 |
| PK |
13537.0 |
0.48 |
1.18 |
|
Download
|
These EQ optimise the Harman score and is a good start for far field listening like in your living room.
AutomaticEQ
Target v.s. EQ
|
Graphic EQ 15 bands
|
|
Set preamp gain to: -0.6dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
25.0 |
2.14 |
0.5 |
| PK |
40.0 |
2.14 |
0.5 |
| PK |
63.0 |
2.14 |
0.0 |
| PK |
100.0 |
2.14 |
-0.5 |
| PK |
160.0 |
2.14 |
-0.5 |
| PK |
250.0 |
2.14 |
-0.5 |
| PK |
400.0 |
2.14 |
-0.5 |
| PK |
630.0 |
2.14 |
-0.25 |
| PK |
1000.0 |
2.14 |
-0.25 |
| PK |
1600.0 |
2.14 |
-0.25 |
| PK |
2500.0 |
2.14 |
-0.25 |
| PK |
4000.0 |
2.14 |
-0.5 |
| PK |
6300.0 |
2.14 |
-0.75 |
| PK |
10000.0 |
2.14 |
-0.5 |
| PK |
16000.0 |
2.14 |
-0.25 |
|
Download
|
These EQ is designed for a 15 bands graphical EQ.
|
Graphic EQ 31 bands
|
|
Set preamp gain to: -0.7dB.
|
| Type |
Freq |
Q |
Gain |
| PK |
20.0 |
4.32 |
0.0 |
| PK |
25.0 |
4.32 |
0.5 |
| PK |
31.0 |
4.32 |
0.5 |
| PK |
40.0 |
4.32 |
0.5 |
| PK |
50.0 |
4.32 |
0.5 |
| PK |
63.0 |
4.32 |
0.25 |
| PK |
80.0 |
4.32 |
0.0 |
| PK |
100.0 |
4.32 |
-0.25 |
| PK |
125.0 |
4.32 |
-0.25 |
| PK |
160.0 |
4.32 |
-0.25 |
| PK |
200.0 |
4.32 |
-0.25 |
| PK |
250.0 |
4.32 |
0.0 |
| PK |
315.0 |
4.32 |
0.0 |
| PK |
400.0 |
4.32 |
0.0 |
| PK |
500.0 |
4.32 |
0.25 |
| PK |
630.0 |
4.32 |
0.0 |
| PK |
800.0 |
4.32 |
0.0 |
| PK |
1000.0 |
4.32 |
0.25 |
| PK |
1250.0 |
4.32 |
0.0 |
| PK |
1600.0 |
4.32 |
0.0 |
| PK |
2000.0 |
4.32 |
0.25 |
| PK |
2500.0 |
4.32 |
0.25 |
| PK |
3150.0 |
4.32 |
0.0 |
| PK |
4000.0 |
4.32 |
0.25 |
| PK |
5000.0 |
4.32 |
0.25 |
| PK |
6300.0 |
4.32 |
0.0 |
| PK |
8000.0 |
4.32 |
0.0 |
| PK |
10000.0 |
4.32 |
0.25 |
| PK |
12000.0 |
4.32 |
0.25 |
| PK |
16000.0 |
4.32 |
0.25 |
| PK |
20000.0 |
4.32 |
0.0 |
|
Download
|
These EQ is designed for a 31 bands graphical EQ.
Comparison betweens various EQs
Improvements made by EQ
|
