What we know about the measurement:

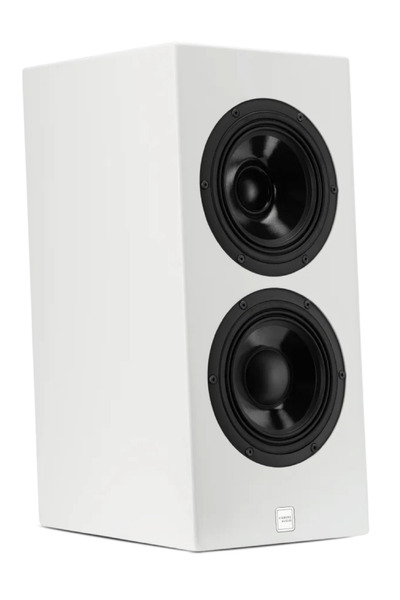

Sigberg Audio SBS.1 is an active bookshelves that cost around 2500 USD each.

  • Quality of the measurement data is medium.
  • Origin of the data is Sigberg Audio.
  • Format of the data is a set of 36 horizontal and 36 vertical measurements .
  • -3dB (resp. -6db) point v.s. reference is at 97.4Hz (resp. 84.2Hz).
  • Reference level is normalised to -0.2dB computed over the frequency range [300.0Hz, 5000.0Hz].
  • Frequency deviation is 2.0dB over the same frequency range.
  • Directivity
    • Horizontal directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
    • Vertical directivity is (-50.0°, 50.0°) between 1kHz and 10kHz. Angle computed for +/-6dB.
  • Tonality (Preference) Score
    • Tonality (Preference) Score is 4.08 and would be 7.37 with a perfect subwoofer.
      • Details: NBD: ON 0.452, LW 0.416, SP 0.393, PIR 0.368; SM: SP0.908, PIR0.826; LFQ 1.181, LFX 84Hz
    • Tonality (Preference) Score is 5.2 with an EQ and would be 8.36 with a perfect subwoofer and the same EQ.
      • Details: NBD: ON 0.33, LW 0.276, SP 0.238, PIR 0.212; SM: SP0.957, PIR0.921; LFQ 1.181, LFX 78Hz
  • Link to original Review: ahl review. Links to other reviews: asr review .
  • Note: Klippel generated data.
  • Vendor specifications:
    • SPL
      • peak: 116 dB
    • Size
      • Width 190mm
      • Height 410mm
      • Depth 230 mm)
    • Weight 9.5 kg
Sigberg Audio SBS.1
AutomaticEQ (IIR)
Set preamp gain to: -2.8dB.
Type Freq Q Gain
PK 95.0 2.51 3.0
PK 149.0 2.75 -1.27
PK 344.0 2.35 -1.32
PK 2094.0 2.99 -3.05
PK 2245.0 1.35 2.99
PK 6585.0 2.14 0.88
PK 12301.0 3.0 -1.55
Download

These EQ optimise the Harman score and is a good start for far field listening like in your living room.

Sigberg Audio SBS.1 filters_auto_eq

AutomaticEQ

Sigberg Audio SBS.1 filters_eq_full

Target v.s. EQ

Sigberg Audio SBS.1
Graphic EQ 15 bands
Set preamp gain to: -0.4dB.
Type Freq Q Gain
PK 25.0 2.14 0.25
PK 40.0 2.14 0.25
PK 63.0 2.14 0.25
PK 100.0 2.14 0.25
PK 160.0 2.14 -0.25
PK 250.0 2.14 -0.25
PK 400.0 2.14 -0.25
PK 630.0 2.14 0.0
PK 1000.0 2.14 0.0
PK 1600.0 2.14 0.0
PK 2500.0 2.14 0.25
PK 4000.0 2.14 0.0
PK 6300.0 2.14 0.25
PK 10000.0 2.14 0.0
PK 16000.0 2.14 0.25
Download

These EQ is designed for a 15 bands graphical EQ.

Sigberg Audio SBS.1
Graphic EQ 31 bands
Set preamp gain to: -0.9dB.
Type Freq Q Gain
PK 20.0 4.32 0.0
PK 25.0 4.32 0.5
PK 31.0 4.32 0.5
PK 40.0 4.32 0.5
PK 50.0 4.32 0.5
PK 63.0 4.32 0.5
PK 80.0 4.32 0.5
PK 100.0 4.32 0.25
PK 125.0 4.32 -0.25
PK 160.0 4.32 -0.25
PK 200.0 4.32 -0.25
PK 250.0 4.32 -0.25
PK 315.0 4.32 -0.25
PK 400.0 4.32 -0.25
PK 500.0 4.32 0.0
PK 630.0 4.32 -0.25
PK 800.0 4.32 0.0
PK 1000.0 4.32 0.25
PK 1250.0 4.32 0.25
PK 1600.0 4.32 0.0
PK 2000.0 4.32 0.25
PK 2500.0 4.32 0.25
PK 3150.0 4.32 0.75
PK 4000.0 4.32 0.25
PK 5000.0 4.32 0.25
PK 6300.0 4.32 0.5
PK 8000.0 4.32 0.0
PK 10000.0 4.32 0.25
PK 12000.0 4.32 0.0
PK 16000.0 4.32 0.5
PK 20000.0 4.32 0.0
Download

These EQ is designed for a 31 bands graphical EQ.
